返回ChemicalBook首頁>CAS數據庫列表>99-85-4更多圖譜> γ-松油烯(99-85-4)紅外圖譜(IR1)

99-85-4

γ-松油烯(99-85-4)紅外圖譜(IR1)

產品名稱:γ-松油烯

CAS:99-85-4

分子式:C10H16

分子量: 136.23

InChI:InChI=1S/C10H16/c1-8(2)10-6-4-9(3)5-7-10/h4,7-8H,5-6H2,1-3H3

InChIKey: YKFLAYDHMOASIY-UHFFFAOYSA-N

Smiles:C1(C)CC=C(C(C)C)CC=1

  • 圖譜

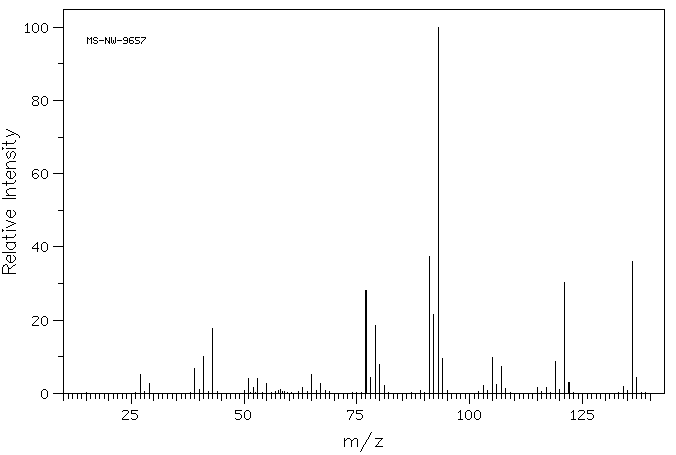

    Mass

    MS-NW-9657
1,4-p-menthadiene
C10H16              (Mass of molecular ion:    136)


       Source Temperature: 260 °C
   Sample Temperature: 150 °C
   Reservoir, 75 eV


          27.0       5.2
      29.0       2.6
      39.0       6.9
      40.0       1.0
      41.0      10.0
      43.0      17.6
      51.0       4.1
      52.0       1.7
      53.0       4.1
      55.0       2.8
      58.0       1.1
      63.0       1.6
      65.0       5.2
      67.0       2.6
      77.0      28.2
      78.0       4.3
      79.0      18.6
      80.0       7.8
      81.0       2.1
      91.0      37.3
      92.0      21.5
      93.0     100.0
      94.0       9.6
     103.0       2.2
     105.0       9.8
     106.0       2.3
     107.0       7.3
     108.0       1.3
     115.0       1.5
     117.0       1.7
     119.0       8.7
     120.0       1.1
     121.0      30.4
     122.0       3.0
     134.0       1.9
     136.0      35.9
     137.0       4.2

90 MHz in CDCl3

  • 圖譜

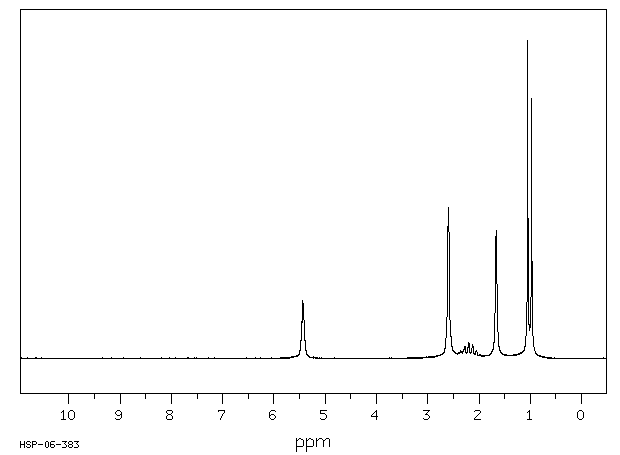

    1H NMR 89.56 MHz
    C10 H16 0.05 ml : 0.5 ml CDCl3
    1,4-p-menthadiene
    ChemicalStructure
        Assign.     Shift(ppm)

      A             5.43
      B             2.60
      C             2.20
      D             1.663
      E             1.014


         Hz     ppm     Int.


        486.81   5.436    182
    485.56   5.422    172
    232.63   2.598    475
    204.06   2.279     39
    203.75   2.276     39
    197.13   2.202     50
    196.94   2.199     50
    190.31   2.125     44
    149.06   1.665    404
     93.94   1.049   1000
     87.19   0.974    817

in CDCl3

  • 圖譜

liquid film

  • 圖譜

  • 圖譜

×
