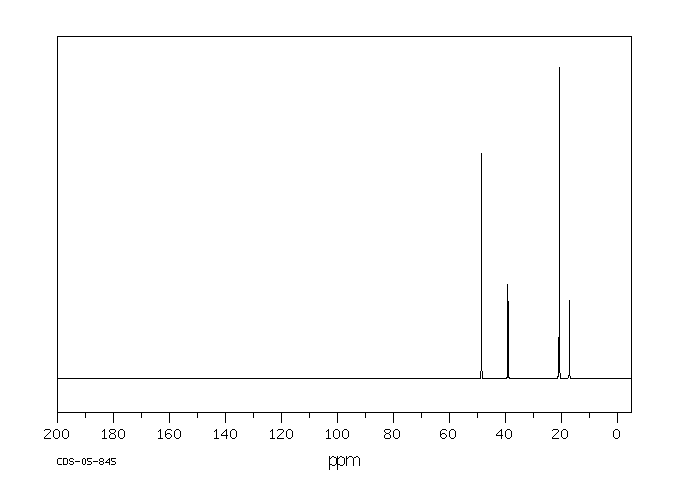

N,N-二異丙基乙胺(7087-68-5)核磁圖(¹³CNMR)

產(chǎn)品名稱:N,N-二異丙基乙胺

CAS:7087-68-5

分子式:C8H19N

分子量: 129.24

InChI:InChI=1S/C8H19N/c1-6-9(7(2)3)8(4)5/h7-8H,6H2,1-5H3

InChIKey: JGFZNNIVVJXRND-UHFFFAOYSA-N

Smiles:CC(N(CC)C(C)C)C

Mass

MS-NW-8902
N-ethyldiisopropylamine
C8H19N              (Mass of molecular ion:    129)

   Source Temperature: 280 °C
   Sample Temperature: 150 °C
   Reservoir, 75 eV

      18.0       1.7
      27.0       5.4
      28.0       4.1
      29.0       2.9
      30.0      13.2
      39.0       1.9
      41.0       9.0
      42.0      12.9
      43.0      11.7
      44.0      29.5
      56.0       4.3
      58.0       4.1
      70.0       7.4
      71.0       1.6
      72.0     100.0
      73.0       4.9
      84.0       2.3
      86.0       5.4
     114.0      64.2
     115.0       5.3
     129.0      15.2
     130.0       1.7

90 MHz in CDCl3

¹H NMR	89.56 MHz
C₈ H₁₉ N	0.04 ml : 0.5 ml CDCl₃
N-ethyldiisopropylamine

    Assign.     Shift(ppm)

      A             3.017
      B             2.467
      C             1.02
      D             1.011

     J(A,D)=6.6HZ. J(B,C)=7.1HZ.

     Hz     ppm     Int.

    284.19   3.174     22
    277.56   3.100     52
    271.00   3.026     70
    264.44   2.953     59
    258.00   2.881     29
    232.31   2.594     23
    225.25   2.516     95
    218.13   2.436    107
    211.38   2.361     29
    211.00   2.356     31
     98.06   1.095    111
     96.13   1.074     26
     93.69   1.047   1000
     91.13   1.018    241
     87.13   0.973    906
     83.88   0.937    101

in CDCl3
