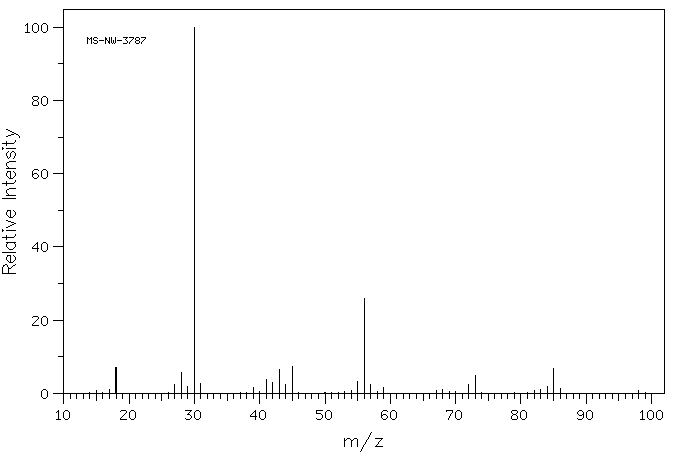

Mass

MS-NW-3787
1,5-pentanediamine
C5H14N2             (Mass of molecular ion:    102)

   Source Temperature: 270 °C
   Sample Temperature: 180 °C
   Reservoir, 75 eV

      17.0       1.1
      18.0       7.2
      27.0       2.3
      28.0       5.6
      29.0       1.8
      30.0     100.0
      31.0       2.7
      39.0       1.5
      41.0       3.9
      42.0       3.1
      43.0       6.6
      44.0       2.5
      45.0       7.3
      55.0       3.3
      56.0      26.0
      57.0       2.3
      59.0       1.6
      68.0       1.1
      72.0       2.3
      73.0       4.8
      83.0       1.0
      84.0       2.0
      85.0       6.7
      86.0       1.3

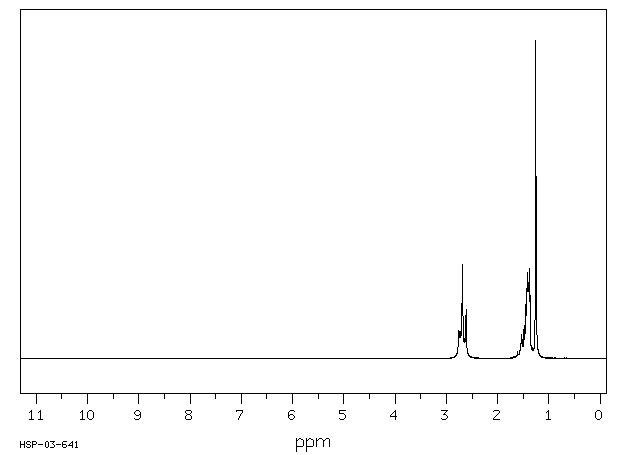

Assign. Shift(ppm) A 2.683 B 1.53 to 1.37 C 1.26

     Hz     ppm     Int.

    247.19   2.761     83
    246.75   2.756     87
    244.69   2.733     86
    242.06   2.703    129
    240.69   2.688    296
    237.13   2.648     62
    234.13   2.615    154
    137.25   1.533     74
    136.19   1.521     60
    135.00   1.508     41
    132.75   1.483    103
    131.25   1.466     89
    129.44   1.446    177
    127.50   1.424    258
    126.56   1.414    272
    125.94   1.407    222
    125.31   1.400    234
    124.81   1.394    240
    122.81   1.372    282
    118.94   1.329     31
    118.31   1.322     34
    112.44   1.256   1000
