返回ChemicalBook首頁>CAS數(shù)據(jù)庫列表>2198-54-1更多圖譜> 3,4-二甲基乙酰苯胺(2198-54-1)紅外圖譜(IR1)

2198-54-1

3,4-二甲基乙酰苯胺(2198-54-1)紅外圖譜(IR1)

產(chǎn)品名稱:3,4-二甲基乙酰苯胺

CAS:2198-54-1

分子式:C10H13NO

分子量: 163.22

InChI:InChI=1S/C10H13NO/c1-7-4-5-10(6-8(7)2)11-9(3)12/h4-6H,1-3H3,(H,11,12)

InChIKey: UAOIEEWQVAXCFY-UHFFFAOYSA-N

Smiles:C(NC1=CC=C(C)C(C)=C1)(=O)C

  • 圖譜

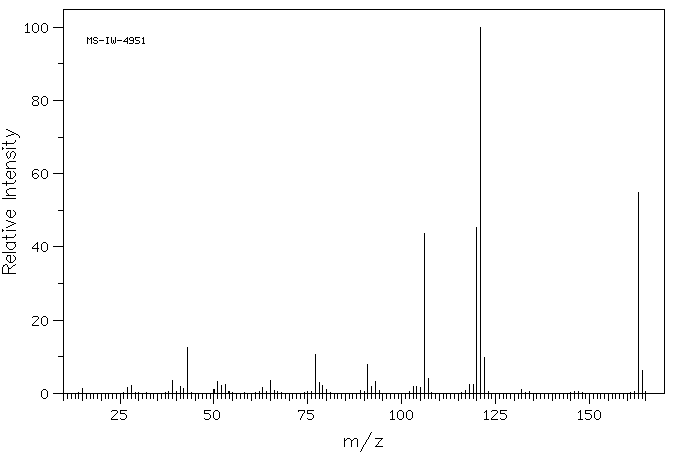

    Mass

    MS-IW-4951
3',4'-dimethylacetanilide
C10H13NO            (Mass of molecular ion:    163)


       Source Temperature: 220 °C
   Sample Temperature: 150 °C
   Reservoir, 75 eV


          15.0       1.2
      27.0       1.6
      28.0       2.1
      39.0       3.5
      41.0       2.0
      42.0       1.2
      43.0      12.5
      50.0       1.0
      51.0       3.2
      52.0       2.2
      53.0       2.4
      63.0       1.5
      65.0       3.4
      77.0      10.5
      78.0       2.9
      79.0       2.1
      80.0       1.0
      91.0       7.9
      92.0       1.8
      93.0       3.3
     103.0       1.8
     104.0       1.9
     105.0       1.6
     106.0      43.8
     107.0       4.0
     118.0       2.3
     119.0       2.5
     120.0      45.4
     121.0     100.0
     122.0       9.7
     132.0       1.0
     163.0      55.0
     164.0       6.2

400 MHz in CDCl3

  • 圖譜

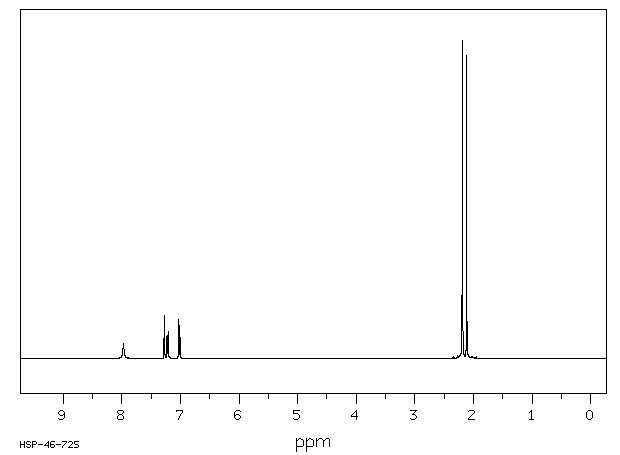

    1H NMR 399.65 MHz
    C10 H13 N O 0.040 g : 0.5 ml CDCl3
    3',4'-dimethylacetanilide

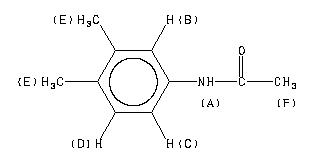

    ChemicalStructure
        Assign.     Shift(ppm)

      A             7.97
      B             7.276
      C             7.216
      D             7.021
      E             2.186
      F             2.113


         Hz     ppm     Int.


       3186.77   7.974     47
   2908.81   7.279    121
   2906.98   7.274    136
   2889.65   7.231     71
   2887.33   7.225     60
   2881.47   7.210     84
   2879.27   7.205     72
   2809.94   7.032    122
   2801.76   7.011    103
    873.78   2.187   1000
    844.48   2.114    955

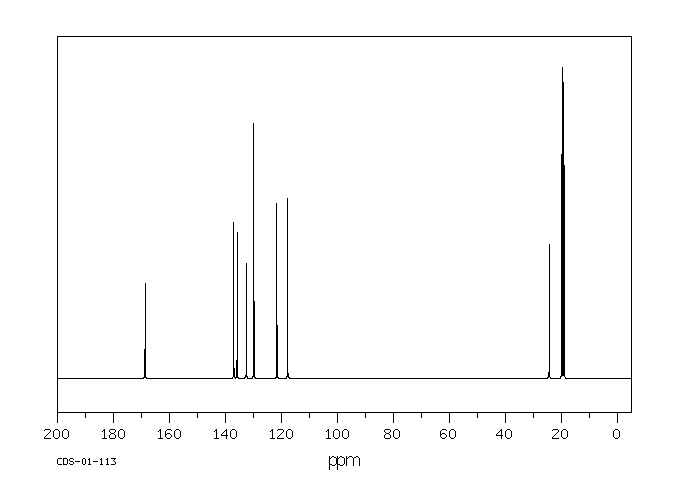

in CDCl3

  • 圖譜

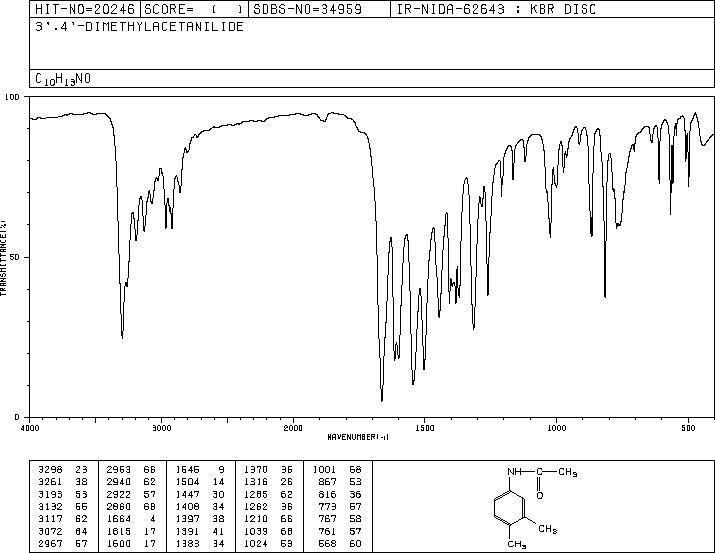

KBr disc

  • 圖譜

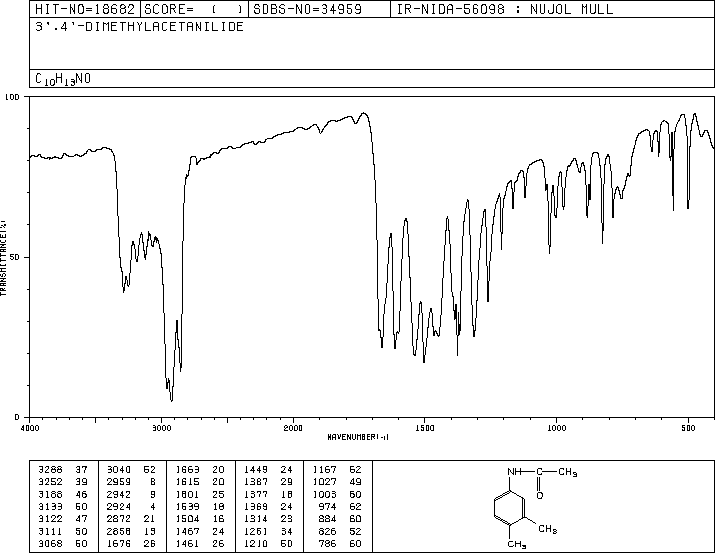

nujol mull

  • 圖譜

×
