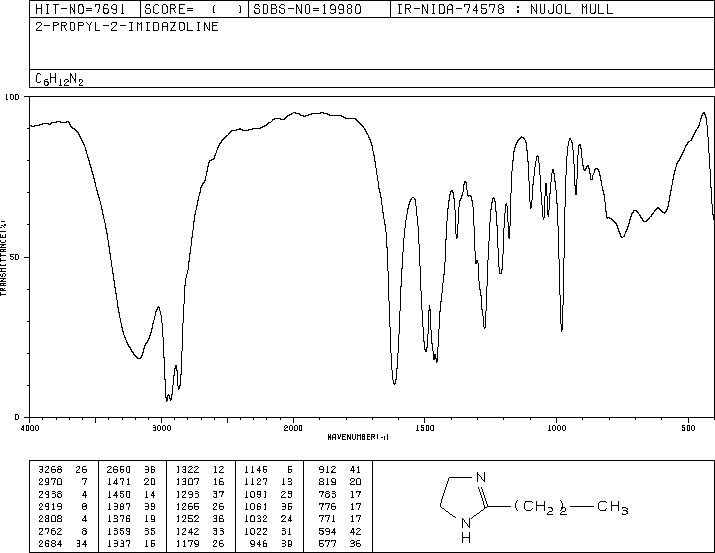

2-丙基咪唑啉(15450-05-2)紅外圖譜(IR2)

產(chǎn)品名稱:2-丙基咪唑啉

CAS:15450-05-2

分子式:C6H12N2

分子量: 112.17

InChI:InChI=1S/C6H12N2/c1-2-3-6-7-4-5-8-6/h2-5H2,1H3,(H,7,8)

InChIKey: LFCYHAXVBWPGQR-UHFFFAOYSA-N

Smiles:C1(CCC)NCCN=1

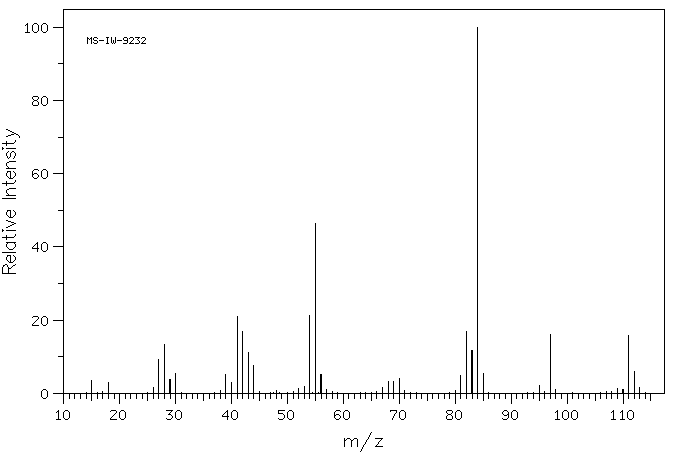

Mass

MS-IW-9232
2-propyl-2-imidazoline
C6H12N2             (Mass of molecular ion:    112)

   Source Temperature: 200 °C
   Sample Temperature: 150 °C
   Reservoir, 75 eV

      15.0       3.4
      18.0       2.9
      26.0       1.7
      27.0       9.3
      28.0      13.3
      29.0       3.7
      30.0       5.4
      39.0       5.2
      40.0       2.9
      41.0      20.9
      42.0      17.0
      43.0      11.1
      44.0       7.5
      52.0       1.4
      53.0       2.0
      54.0      21.4
      55.0      46.5
      56.0       5.2
      57.0       1.1
      67.0       1.6
      68.0       3.2
      69.0       3.2
      70.0       4.1
      81.0       5.0
      82.0      16.9
      83.0      11.7
      84.0     100.0
      85.0       5.3
      95.0       2.2
      97.0      16.0
      98.0       1.1
     109.0       1.4
     110.0       1.1
     111.0      15.7
     112.0       6.0
     113.0       1.6

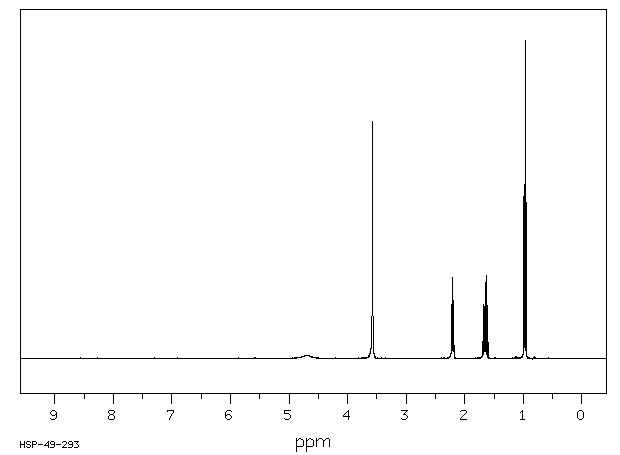

400 MHz in CDCl3

¹H NMR	399.65 MHz
C₆ H₁₂ N₂	0.037 g : 0.5 ml CDCl₃
2-propyl-2-imidazoline

    Assign.     Shift(ppm)

      A             4.7
      B             3.572
      C             2.205
      D             1.640
      E             0.968

     Hz     ppm     Int.

   1427.86   3.573    747
    889.04   2.225    170
    881.35   2.206    254
    873.66   2.187    184
    674.93   1.689     53
    667.48   1.671    169
    665.28   1.665     30
    661.99   1.657     52
    659.79   1.651    238
    657.84   1.647     49
    654.66   1.639     47
    652.22   1.632    261
    650.39   1.628     45
    646.00   1.617     45
    644.78   1.614    168
    637.33   1.595     50
    394.17   0.987    547
    391.60   0.980     41
    386.84   0.968   1000
    379.39   0.950    490

in CDCl3
