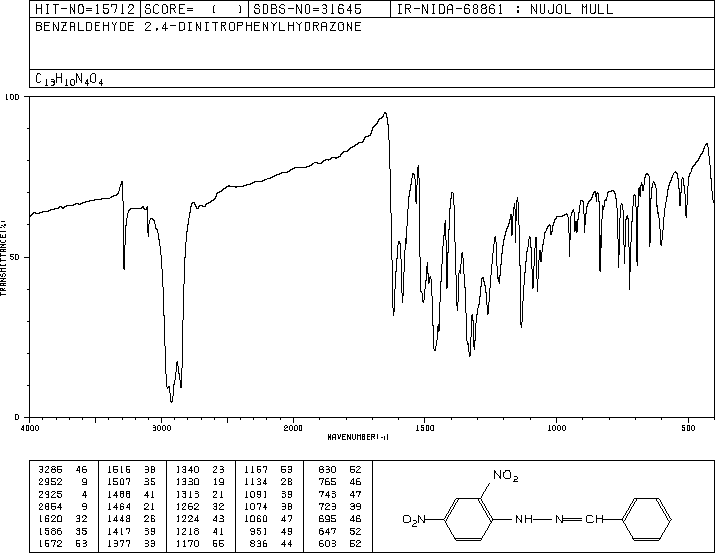

苯甲醛-DNPH(1157-84-2)紅外圖譜(IR1)
分子式:C13H10N4O4
分子量: 286.24
InChI:InChI=1S/C13H10N4O4/c18-16(19)11-6-7-12(13(8-11)17(20)21)15-14-9-10-4-2-1-3-5-10/h1-9,15H
InChIKey: DZPRPFUXOZTWAJ-UHFFFAOYSA-N
Smiles:C(=NNC1=CC=C([N+]([O-])=O)C=C1[N+]([O-])=O)C1=CC=CC=C1
-
Mass
MS-IW-6504
benzaldehyde 2,4-dinitrophenylhydrazone
C13H10N4O4 (Mass of molecular ion: 286)
Source Temperature: 160 °C
Sample Temperature: 170 °C
Direct, 75 eV
28.0 3.6
30.0 2.9
38.0 1.0
39.0 3.0
50.0 2.2
51.0 9.3
52.0 2.9
62.0 1.8
63.0 6.1
64.0 4.4
65.0 1.6
74.0 1.0
75.0 2.9
76.0 4.2
77.0 24.2
78.0 8.3
79.0 15.4
80.0 1.4
89.0 6.6
90.0 6.3
91.0 3.3
92.0 3.6
103.0 6.0
104.0 10.6
105.0 8.6
106.0 4.2
107.0 40.8
108.0 3.3
115.0 1.8
122.0 3.8
132.0 1.3
139.0 3.6
140.0 1.9
143.0 1.7
151.0 1.1
152.0 9.3
153.0 1.6
163.0 2.3
164.0 5.5
165.0 7.9
166.0 7.2
167.0 3.1
178.0 2.4
179.0 1.4
180.0 5.6
181.0 3.6
192.0 4.8
193.0 5.5
194.0 2.6
195.0 2.3
205.0 3.2
209.0 1.3
224.0 1.4
239.0 2.7
240.0 1.2
241.0 1.3
251.0 3.0
285.0 2.8
286.0 100.0
287.0 16.2
288.0 2.1
