ChemicalBook
English   Japanese   Germany   Korea

111-40-0

二乙烯三胺(111-40-0)紅外圖譜(IR1)

產(chǎn)品名稱:二乙烯三胺

CAS:111-40-0

分子式:C4H13N3

分子量: 103.17

InChI:InChI=1S/C4H13N3/c5-1-3-7-4-2-6/h7H,1-6H2

InChIKey: RPNUMPOLZDHAAY-UHFFFAOYSA-N

Smiles:C(NCCN)CN

  • 圖譜
    Mass

    MS-NW-8896
bis(2-aminoethyl)amine
C4H13N3             (Mass of molecular ion:    103)


       Source Temperature: 280 °C
   Sample Temperature: 150 °C
   Reservoir, 75 eV


          15.0       1.5
      18.0      11.1
      27.0       1.8
      28.0       6.8
      29.0       2.2
      30.0      24.2
      41.0       1.8
      42.0       7.0
      43.0       5.9
      44.0     100.0
      45.0       3.4
      55.0       1.2
      56.0      10.6
      57.0       1.9
      58.0       1.4
      70.0       1.3
      71.0       1.0
      73.0      70.4
      74.0       4.1
      84.0       1.0
      86.0       3.2
      87.0       1.0
      99.0       2.5
     104.0       1.6

90 MHz in CDCl3

  • 圖譜

    1H NMR 89.56 MHz
    C4 H13 N3 0.04 ml : 0.5 ml CDCl3
    bis(2-aminoethyl)amine
    ChemicalStructure
        Assign.     Shift(ppm)

      A             2.79
      B             2.69
      C             1.23


         Hz     ppm     Int.


        258.94   2.892     40
    255.75   2.856     76
    251.75   2.811     52
    250.88   2.802    171
    250.06   2.793    150
    249.25   2.784     76
    247.06   2.759    258
    246.31   2.751    297
    243.63   2.721    293
    242.81   2.712    260
    240.63   2.687     74
    239.88   2.679    147
    239.00   2.669    168
    238.19   2.660     61
    234.13   2.615     73
    231.00   2.580     40
    109.69   1.225   1000

in CDCl3

  • 圖譜

liquid film

  • 圖譜

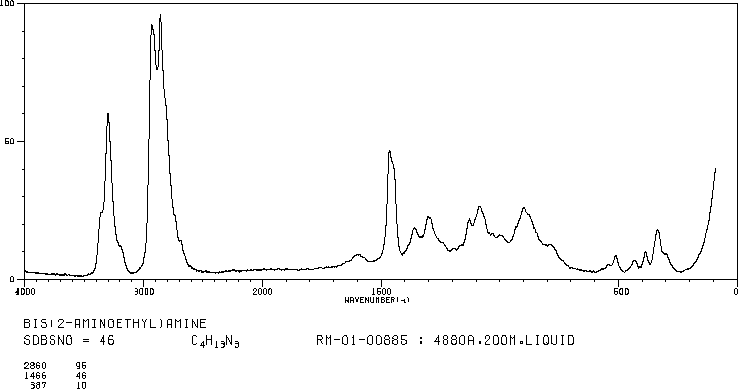

4880 A,200 M,liquid

  • 圖譜

×
