ChemicalBook
English   Japanese   Germany   Korea

110-72-5

N-乙基乙二胺(110-72-5)紅外圖譜(IR1)

產(chǎn)品名稱:N-乙基乙二胺

CAS:110-72-5

分子式:C4H12N2

分子量: 88.15

InChI:InChI=1S/C4H12N2/c1-2-6-4-3-5/h6H,2-5H2,1H3

InChIKey: SCZVXVGZMZRGRU-UHFFFAOYSA-N

Smiles:C(NCC)CN

  • 圖譜

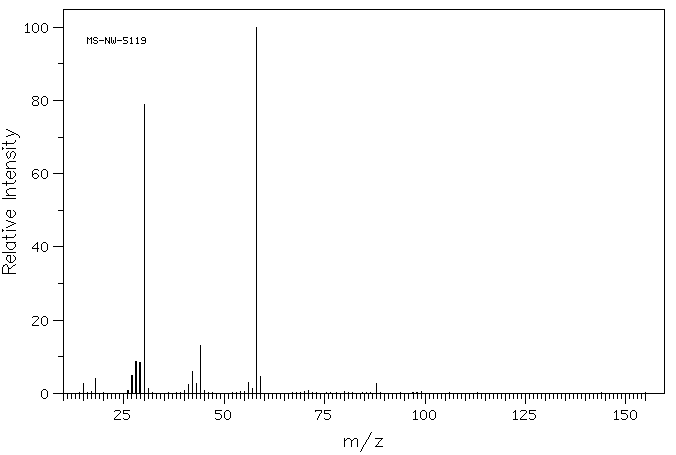

    Mass

    MS-NW-5119
N-ethylethylenediamine
C4H12N2             (Mass of molecular ion:     88)


       Source Temperature: 260 °C
   Sample Temperature: 180 °C
   Reservoir, 75 eV


          15.0       2.6
      18.0       4.1
      27.0       4.8
      28.0       8.8
      29.0       8.3
      30.0      78.9
      31.0       1.3
      41.0       2.3
      42.0       6.1
      43.0       2.8
      44.0      13.2
      56.0       3.1
      57.0       1.4
      58.0     100.0
      59.0       4.6
      88.0       2.8

400 MHz in CDCl3

  • 圖譜

    1H NMR 399.65 MHz
    C4 H12 N2 0.05 ml : 0.5 ml CDCl3
    N-ethylethylenediamine
    ChemicalStructure
        Assign.     Shift(ppm)

      A             2.804
      B             2.67
      C             2.66
      D             1.17
      E             1.114


         Hz     ppm     Int.


       1127.08   2.821    199
   1126.46   2.819    199
   1121.09   2.806    404
   1120.24   2.804    249
   1114.75   2.790    307
   1078.86   2.700     39
   1073.97   2.688    243
   1072.63   2.684    321
   1072.27   2.684    324
   1066.77   2.670    653
   1060.91   2.655    241
   1059.57   2.652    567
   1052.49   2.634    215
    467.77   1.171    305
    456.05   1.142     50
    452.27   1.132    638
    445.19   1.114   1000
    437.99   1.096    642
    433.23   1.085     34

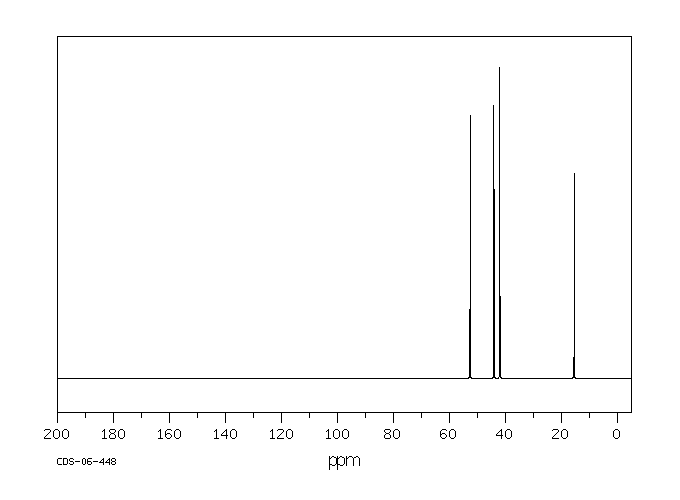

in CDCl3

  • 圖譜

liquid film

  • 圖譜

  • 圖譜

×
