108-32-7

碳酸丙烯酯(108-32-7)紅外圖譜(IR1)

產(chǎn)品名稱:碳酸丙烯酯

CAS:108-32-7

分子式:C4H6O3

分子量: 102.09

InChI:InChI=1S/C4H6O3/c1-3-2-6-4(5)7-3/h3H,2H2,1H3

InChIKey: RUOJZAUFBMNUDX-UHFFFAOYSA-N

Smiles:O1CC(C)OC1=O

  • 圖譜

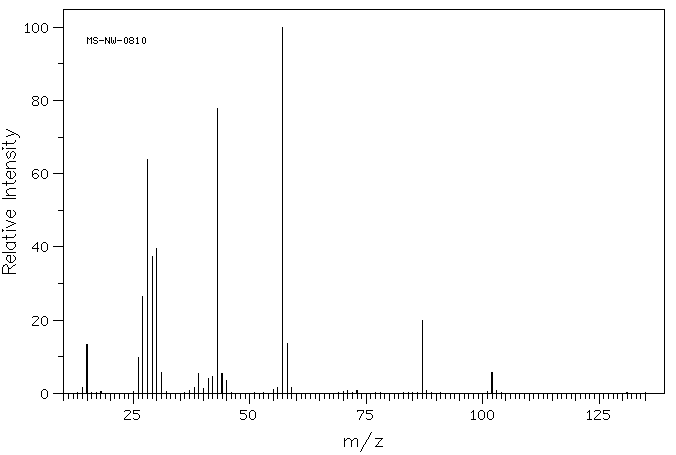

    Mass

    MS-NW-0810
propylene carbonate
C4H6O3              (Mass of molecular ion:    102)


       Source Temperature: 230 °C
   Sample Temperature: 150 °C
   Reservoir, 75 eV


          14.0       1.5
      15.0      13.3
      26.0       9.7
      27.0      26.4
      28.0      63.8
      29.0      37.4
      30.0      39.6
      31.0       5.7
      38.0       1.5
      39.0       5.5
      40.0       1.4
      41.0       4.1
      42.0       4.7
      43.0      77.8
      44.0       5.5
      45.0       3.6
      55.0       1.1
      56.0       1.7
      57.0     100.0
      58.0      13.6
      59.0       1.7
      87.0      20.0
     102.0       5.6

90 MHz in CDCl3

  • 圖譜

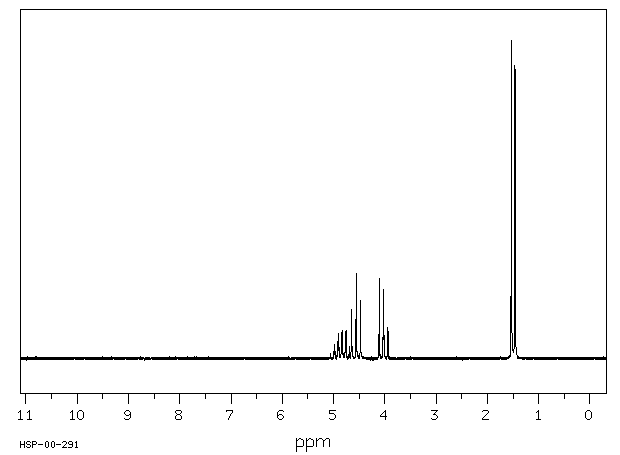

    1H NMR 89.56 MHz
    C4 H6 O3 0.02 ml : 0.5 ml CDCl3
    propylene carbonate
    ChemicalStructure
        Assign.     Shift(ppm)

      A             4.854
      B     *1      4.56
      C     *1      4.04
      D             1.497


         Hz     ppm     Int.


        440.63   4.920     54
    439.63   4.909     76
    439.19   4.904     80
    433.56   4.842     71
    433.00   4.835     85
    432.06   4.825     88
    426.06   4.758     89
    416.31   4.649    156
    408.69   4.564    124
    408.06   4.557    267
    400.50   4.472    183
    368.13   4.111    251
    361.06   4.032    216
    359.94   4.019    177
    352.94   3.941     99
    137.00   1.530   1000
    130.88   1.462    921

in CDCl3

  • 圖譜

CCl4 solution

  • 圖譜

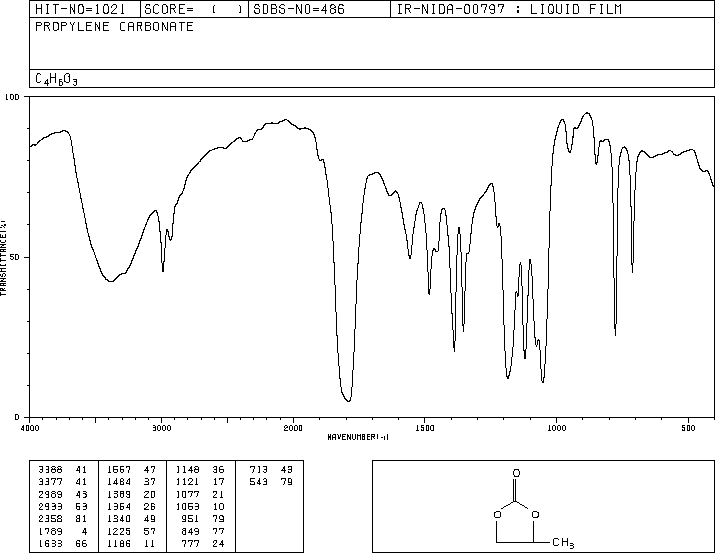

liquid film

  • 圖譜

4880 A,200 M,liquid

  • 圖譜

×
