1-羥乙基氮丙啶(1072-52-2)核磁圖(¹HNMR)

產(chǎn)品名稱:1-羥乙基氮丙啶

CAS:1072-52-2

分子式:C4H9NO

分子量: 87.12

InChI:InChI=1S/C4H9NO/c6-4-3-5-1-2-5/h6H,1-4H2

InChIKey: VYONOYYDEFODAJ-UHFFFAOYSA-N

Smiles:N1(CCO)CC1

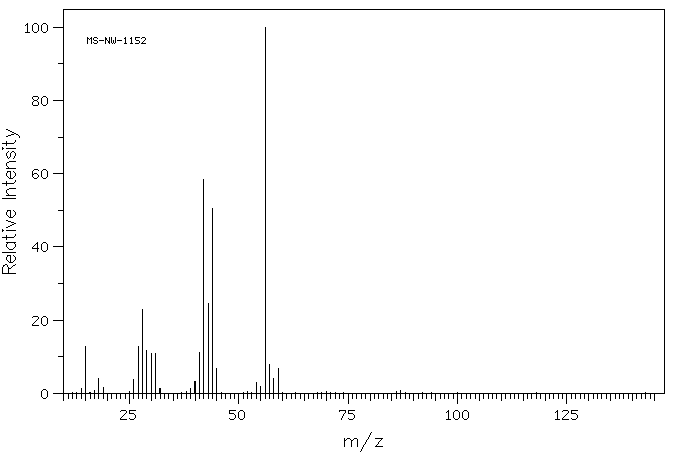

Mass

MS-NW-1152
1-aziridineethanol
C4H9NO              (Mass of molecular ion:     87)

   Source Temperature: 240 °C
   Sample Temperature: 170 °C
   Reservoir, 75 eV

      14.0       1.4
      15.0      12.9
      18.0       4.1
      19.0       1.6
      26.0       3.7
      27.0      12.9
      28.0      23.0
      29.0      11.7
      30.0      11.0
      31.0      11.0
      32.0       1.2
      39.0       1.3
      40.0       3.2
      41.0      11.1
      42.0      58.3
      43.0      24.5
      44.0      50.4
      45.0       6.7
      54.0       3.0
      55.0       1.8
      56.0     100.0
      57.0       7.9
      58.0       4.0
      59.0       6.8

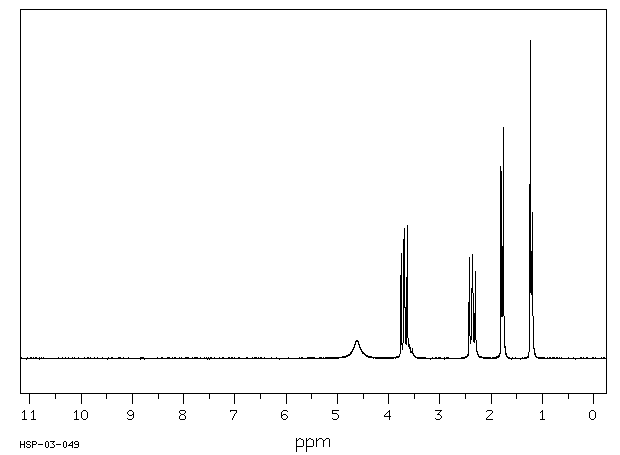

90 MHz in CDCl3

¹H NMR	89.56 MHz
C₄ H₉ N O	0.04 ml : 0.5 ml CDCl₃
1-aziridineethanol

    Assign.     Shift(ppm)

      A             4.63
      B             3.692
      C             2.368
      D     *1      1.780
      E     *1      1.222

     Hz     ppm     Int.

    413.94   4.622     57
    336.50   3.758    329
    331.31   3.700    409
    330.25   3.688    214
    325.88   3.639    417
    322.88   3.606     37
    322.13   3.597     43
    217.38   2.428    319
    211.75   2.365    328
    206.81   2.310    272
    162.06   1.810    604
    161.19   1.800    277
    160.00   1.787    353
    159.63   1.783    350
    158.38   1.769    292
    157.56   1.760    729
    111.38   1.244    548
    110.88   1.239   1000
    109.25   1.220    337
    106.88   1.194    459

in CDCl3
