(1S,3R,5S)-2-tert-Butyl 3-ethyl 2-azabicyclo[3.1.0]hexane-2,3-dicarboxylate(871727-40-1) 1H NMR
Product Name(1S,3R,5S)-2-tert-Butyl 3-ethyl 2-azabicyclo[3.1.0]hexane-2,3-dicarboxylate
CAS871727-40-1
Molecular FormulaC13H21NO4
Molecular Weight255.31
InChIInChI=1S/C13H21NO4/c1-5-17-11(15)10-7-8-6-9(8)14(10)12(16)18-13(2,3)4/h8-10H,5-7H2,1-4H3/t8-,9-,10+/m0/s1
InChIKey QHWOZJGWXZDMDZ-LPEHRKFASA-N
Smiles[C@@]12([H])[C@@]([H])(C1)C[C@H](C(OCC)=O)N2C(OC(C)(C)C)=O

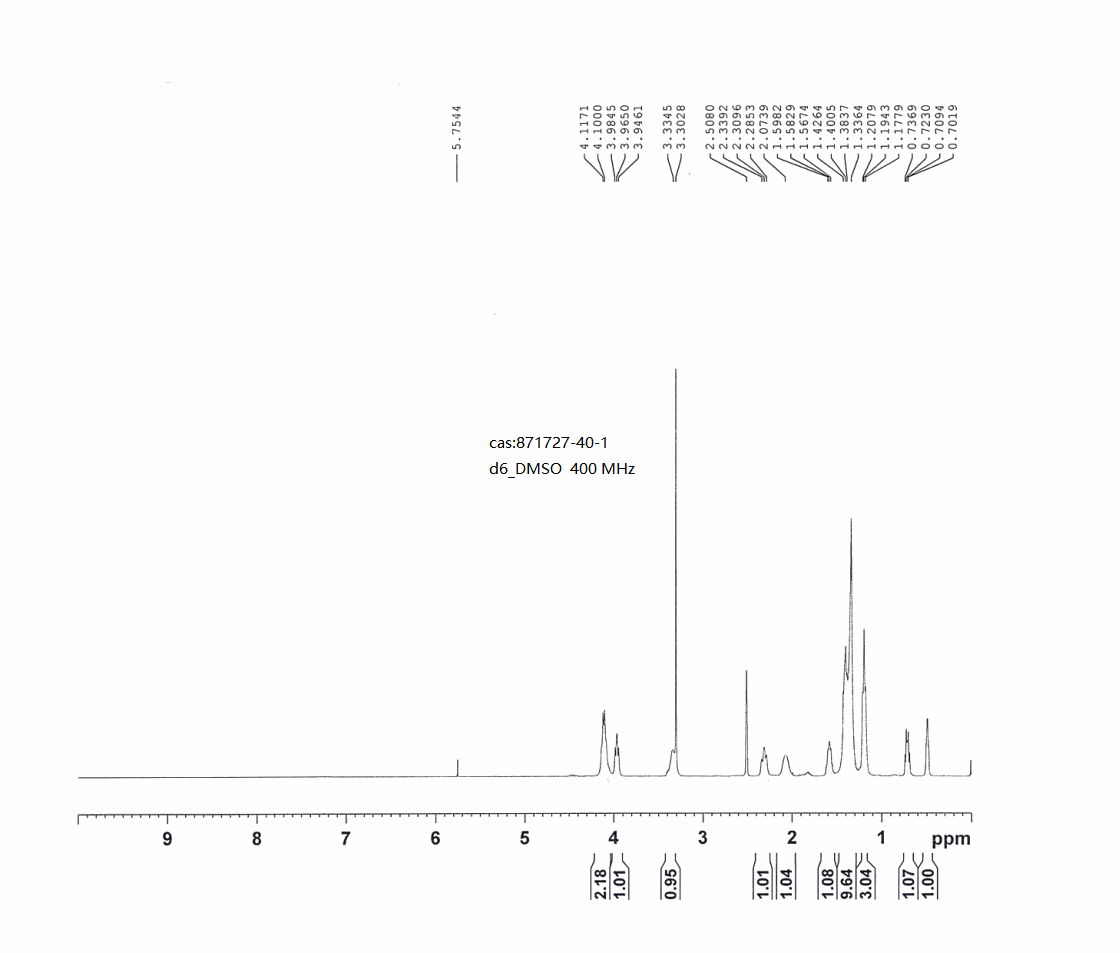

![(1S,3R,5S)-2-tert-Butyl 3-ethyl 2-azabicyclo[3.1.0]hexane-2,3-dicarboxylate(871727-40-1) <sup>1</sup>H NMR](http://m.approvedhomemanagement.com/Spectrum/871727-40-1_1HNMR.gif)
