N,N'-Dimethyl-1,2-ethanediamine(110-70-3) Raman
Product NameN,N'-Dimethyl-1,2-ethanediamine
CAS110-70-3
Molecular FormulaC4H12N2
Molecular Weight88.15
InChIInChI=1S/C4H12N2/c1-5-3-4-6-2/h5-6H,3-4H2,1-2H3
InChIKey KVKFRMCSXWQSNT-UHFFFAOYSA-N
SmilesC(NC)CNC
-

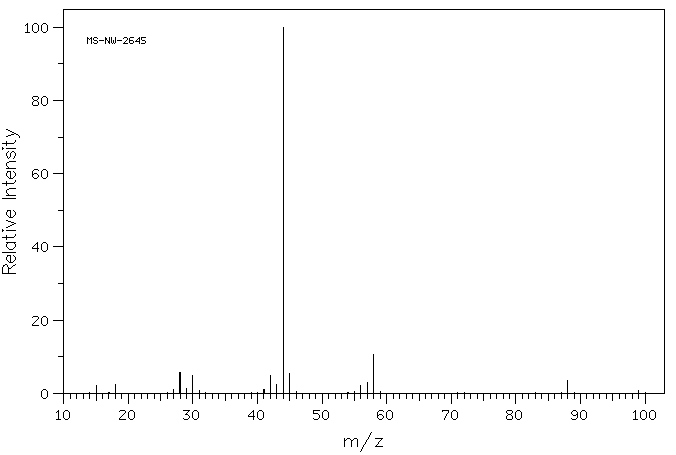

MassMS-NW-2645 N,N'-dimethylethylenediamine C4H12N2 (Mass of molecular ion: 88)
Source Temperature: 280 °C Sample Temperature: 180 °C Reservoir, 75 eV
15.0 2.2 18.0 2.5 27.0 1.1 28.0 5.6 29.0 1.3 30.0 5.0 41.0 1.1 42.0 4.8 43.0 2.3 44.0 100.0 45.0 5.5 56.0 2.2 57.0 3.1 58.0 10.6 88.0 3.5
90 MHz in CDCl3
-
1H NMR 89.56 MHz C4 H12 N2 0.05 ml : 0.5 ml CDCl3 N,N'-dimethylethylenediamine
Assign. Shift(ppm)
A 2.69 B 2.433 C 1.24
Hz ppm Int.
240.44 2.685 733 217.88 2.433 1000 110.81 1.238 403
in CDCl3
liquid film
